Home > Products >Product Information |
|
 |
| Product Name ： |

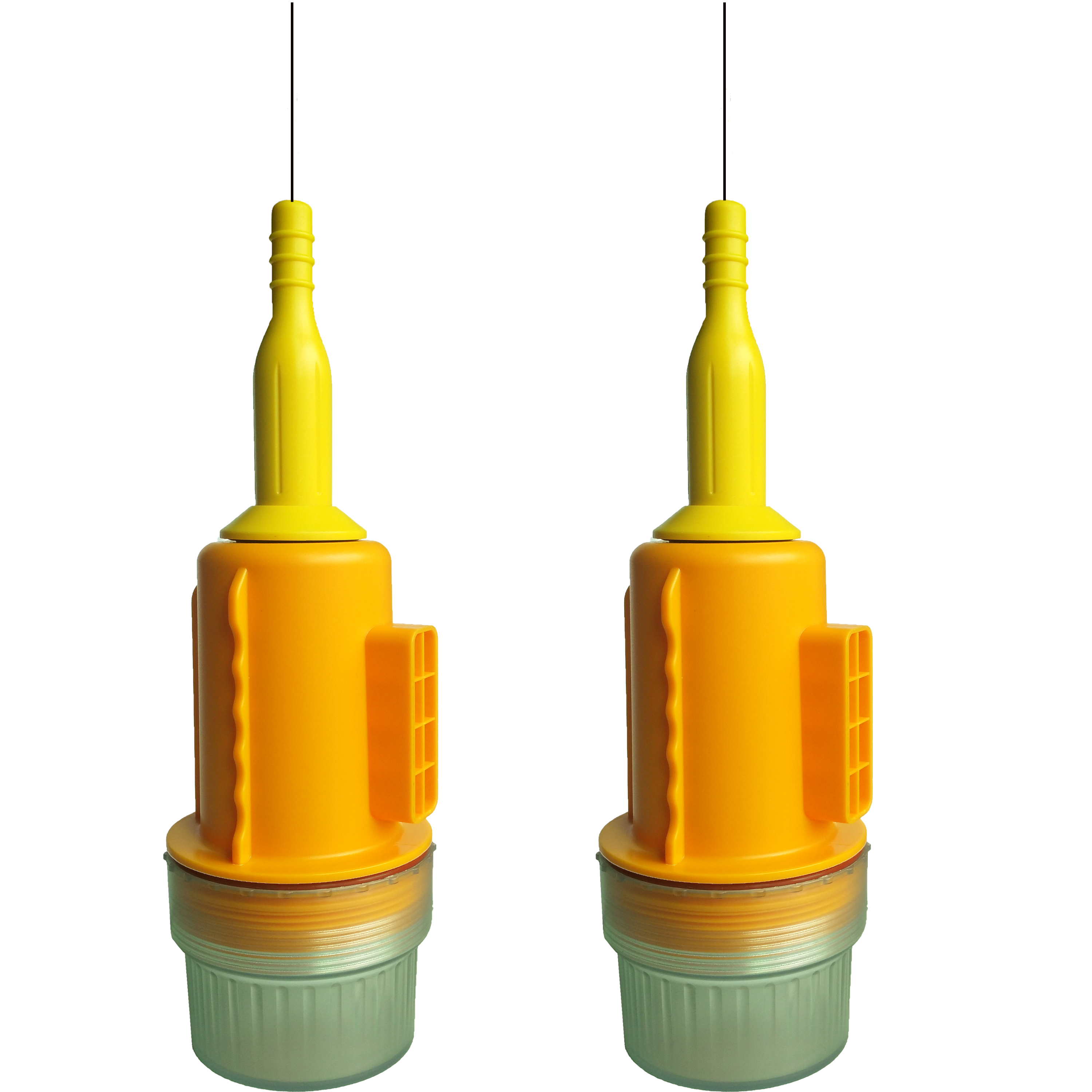

| GPS Fishing net tracking buoy |
| Model： |
| RD-510 |
|
|
| Introduction |
Features |
Parameters |
Other |
|
|
| Introduction |
Features |
Parameters |
Other |
|
|
1:Professional reliability RF performance
2:External VHF antenna and GPS antenna sealed inside toughened outer shell
3:Transmits full AIS messages
4:Configurable transmit intervals ,can connect to PC to program the MMSI data,vessel
Name etc,data with programming kit
5:Can set up password,the MMSI and vessel name can not be changed without the
Password ,in ase product was lost or stolen,it can be easily find out once it be used
6:Built-in rechargeable battery with more than 240 hours
7:High-level waterproofing protecting up to IPX7
8:SOS button for safety boardcase message “MAYDAY MAYDAY MAYDAY”
Proved performance
Up to 15nm range long distance for tracking ,idea for tracking small vessel or
Fishing net
|
| Introduction |
Features |
Parameters |
Other |
|
|
Specification
Standards:
EC62287-1: 2006-03
IEC60945: 2002
ITU-R M.1371-2
Position update: every 3 minutes
Working frequency: 161.975MHz / 162.025MHz
Output power: 34.8dBm±1.5dBm
Range:up to 15nm
Channel bandwidth: 25 KHz
Modulation mode: GMSK
Bit Rate: 9600b/s±50ppm(GMSK)
Dimension: 1260 mm x 90mm
Weight: 0.5 KGS
Battery: 12.6V, 4000mAh; rechargeable
Working time: More than 240 hours
Antenna: External 1.1m VHF antenna
GPS Module: IEC61108-1 standard
Working Environment: -20C – 55C
Waterproofing: IPX7
|
| Introduction |
Features |
Parameters |
Other |
|
|
Equipment List:
Tracking Buoy unit
1.1m VHF antenna
Battery recharger
|
|
|
